Detail Information

Engine No:	EX200	Weight:	23kg
PN:	6BD1	Warranty:	6 Months
MOQ(Minimum Order Quantity:):	1pcs	Delivery Methods:	Express: DHL Fedex EMS UPS Or By Air/ Sea
Condition:	100% New	Supply Ability:	1000pcs Per Week
Highlight:	diesel engine water pump , water pump replacement , komatsu water pump

Product Description

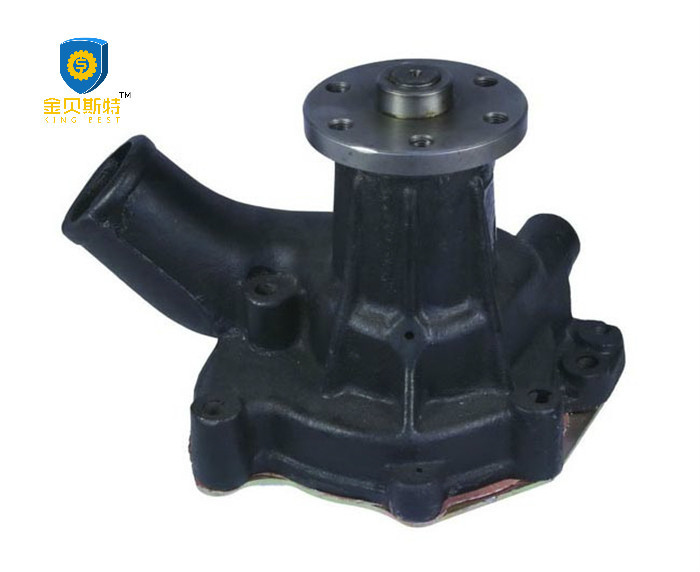

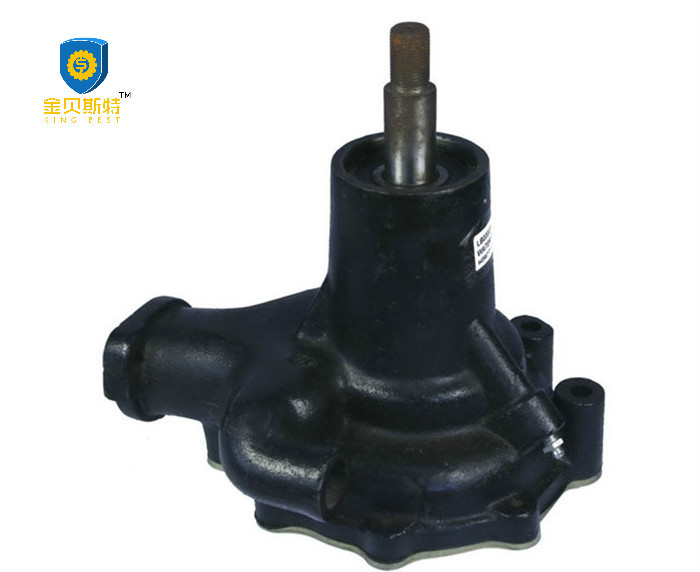

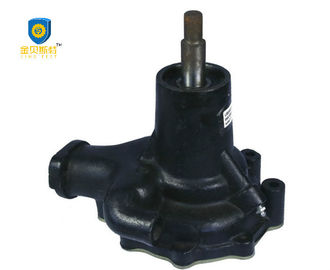

1, Isuzu Engine 6BD1 Water Pump High Pressure Hitachi Pump 6 Holes Part No 513610-1452

2, Part Description:

1	Product Name:	Water Pump Assy
2	Model&No.	6BD1
3	Part number	513610-1452
4	Brand	KING BEST
5	Weight	23kg
6	Warranty:	6months
7	MOQ	1 Piece
8	Condition	100% New
9	Availability	In Stock
10	Supply Ability	1000pcs per week
11	Port	Guangzhou Or As Request
12	Delivery Methods	Express: DHL Fedex EMS UPS Or By Air/ Sea
13	Payment Methods	Bank transfer , Western Union , Money Gram , Credit Card , Paypal

3, Excavator water pump Part No 8-94376865-0,89437686

4, Excavator water pump Part No8-94376865-0,89437686 , It can be used on Engine NO: 4BD1

5, More Related Komatsu parts 8-94376865-0,89437686

Pos.	Part No	Qty	Parts name	Weight
1	6138-61-1850	[1]	WATER PUMP ASS'Y	22.64 kg.
2	6138-61-1860	[1]	WATER PUMP ASS'Y,(FOR REVERSIBLE FAN)	22.64 kg.
3	07062-00000	[1]	VALVE	0.013 kg.
4	6138-61-1320	[1]	SHAFT	1.21 kg.
5	06007-06007	[1]	BEARING,BALL	0.151 kg.
6	6138-61-1220	[1]	SPACER
7	06030-05207	[1]	BEARING,BALL	0.207 kg.
8	6162-63-1440	[1]	RING,SNAP	0.02 kg.
9	6131-62-1340	[1]	SEAL,OIL (K2)	0.04 kg.
10	6134-61-1390	[1]	SLEEVE	0.037 kg.
11	6138-61-3850	[1]	PULLEY
12	6138-61-3860	[1]	PULLEY,(FOR REVERSIBLE FAN)	6.261 kg.
13	01598-02223	[1]	NUT
14	01643-32260	[1]	WASHER	0.042 kg.
15	6150-61-1520	[1]	SEAL, WATER (K2)	0.03 kg.
16	6138-61-1330	[1]	IMPELLER	0.82 kg.
17	6138-61-1120	[1]	COVER	0.386 kg.
18	07000-05160	[1]	O-RING (K2)	0.017 kg.
19	6138-61-1130	[1]	RING,SNAP
20	6136-61-1811	[1]	GASKET (K2)	0.02 kg.
21	01435-01055	[3]	BOLT	0.04 kg.
22	01010-31060	[3]	BOLT	0.048 kg.
23	01435-01050	[1]	BOLT	0.037 kg.
24	01010-31050	[1]	BOLT	0.042 kg.
25	01602-01030	[4]	WASHER,SPRING	0.004 kg.
26	6138-11-6420	[1]	HOUSING,THERMOSTAT	0.962 kg.
27	07042-00415	[1]	PLUG	0.056 kg.
28	6672-12-6290	[1]	PLUG
29	07005-01612	[1]	GASKET (K1)	0.01 kg.
30	6136-11-1821	[1]	GASKET (K1)	0.01 kg.
31	01640-01016	[2]	WASHER	0.177 kg.
32	6136-61-6111	[1]	NIPPLE
33	6138-61-6120	[1]	HOSE	0.11 kg.
34	07281-00489	[2]	CLAMP	0.035 kg.
35	6136-61-1210	[1]	BRACKET
36	6112-23-6971	[1]	SPACER	0.125 kg.
37	01435-01075	[1]	BOLT	0.049 kg.
38	01010-31080	[1]	BOLT	0.06 kg.
39	01435-00816	[2]	BOLT	0.013 kg.
40	01010-30816	[2]	BOLT	0.012 kg.
41	01602-00825	[2]	WASHER,SPRING	0.004 kg.
42	600-421-6310	[1]	THERMOSTAT	0.3 kg.
43	6138-11-6511	[1]	CONNECTOR,WATER	0.38 kg.
44	6138-11-6510	[1]	CONNECTOR,WATER	0.38 kg.
45	6138-11-6810	[1]	GASKET (K1)	0.01 kg.
46	01435-20825	[3]	BOLT	0.016 kg.
47	01010-30830	[3]	BOLT	0.017 kg.
48	01640-20816	[3]	WASHER	0.002 kg.
49	6138-61-6470	[1]	CONNECTOR
50	6138-61-6461	[1]	GASKET (K1)	0.01 kg.
51	01435-00820	[2]	BOLT	0.015 kg.
52	01010-30825	[2]	BOLT	0.015 kg.
53	600-633-0800	[1]	FAN	15 kg.
54	600-614-8742	[1]	FAN,REVERSIBLE	20.45 kg.
55	6114-61-3321	[1]	SPACER
56	01435-01090	[6]	BOLT	0.057 kg.
57	01010-31095	[6]	BOLT
58	01435-01085	[6]	BOLT,(FOR REVERSIBLE FAN)	0.055 kg.
59	6138-61-8830	[1]	ELBOW,(SEE FIG.0521)
60	6130-71-6411	[1]	CLIP,(SEE FIG.0521)
61	04121-21763	[1]	V-BELT SET	0.55 kg.

7, More Komatsu Water pump We can supply now

S/N	Part Name	Part No.	Brand	Model
1	Water Pump Ass'y	6132-61-1616	Komatsu	4D94E
2	Water Pump Ass'y	6136-61-1102	Komatsu	PC200-1/2 /6D105
3	Water Pump Ass'y	6136-62-1102	Komatsu	PC200-3/6D105
4	Water Pump Ass'y	6206-61-1102	Komatsu	PC200-5 /6D95
5	Water Pump Ass'y	6209-61-1100	Komatsu	PC200-6 /6D95
5	Water Pump Ass'y	6206-61-1505	Komatsu	PC200-6 /6D95
6	Water Pump Ass'y	6735-61-1501 /3389145	Komatsu	PC200-6/7/8 /6D102 /6BT5.9 /R220-5
7	Water Pump Ass'y	6151-61-1101	Komatsu	PC300-3 /PC400-5 /6D125
8	Water Pump Ass'y	6221-61-1102	Komatsu	PC300-6 /6D108 4Holes
9	Water Pump Ass'y	6222-63-1200	Komatsu	PC300-6 /6D108 8Holes
10	Water Pump Ass'y	6124-61-1004	Komatsu	S6D155 /D155A1
11	Water Pump Ass'y	6127-61-1008	Komatsu	SA6D155 /D355C1
12	Water Pump Ass'y	6162-63-1015	Komatsu	6D170
13	Water Pump Ass'y	6138-61-1860 /6138-61-1400	Komatsu	WA350-1/PC400-1/6D110
14	Water Pump Ass'y	6151-62-1102	Komatsu	PC400-6 /S6D125E
15	Water Pump Ass'y	6685-61-1024	Komatsu	NH220
16	Water Pump Ass'y	6685-61-1024	Komatsu	D80
17	Water Pump Ass'y		Komatsu	PC200-8
18	Water Pump Ass'y	5I7693		E200B /E320 /S6K
19	Water Pump Ass'y	ME993473		E307B /SH60 /4M40
20	Water Pump Ass'y	129-1169		E330
21	Water Pump Ass'y	224-3253		E330C-9
22	Water Pump Ass'y	224-3255		E3126
23	Water Pump Ass'y	4W0249		E325B/C /E3116
24	Water Pump Ass'y	2W1223		E3204
25	Water Pump Ass'y	2W1225		E320B
26	Water Pump Ass'y	2P0661		3006T
27	Water Pump Ass'y	2W8001		3006T
28	Water Pump Ass'y	2W8002		3306T
29	Water Pump Ass'y	2P0662		3306T
30	Water Pump Ass'y	7C4957		E3406

Isuzu Engine Excavator Water Pump High Pressure With 6 Holes Part No. 513610-1452 0

Isuzu Engine Excavator Water Pump High Pressure With 6 Holes Part No. 513610-1452 1

Isuzu Engine Excavator Water Pump High Pressure With 6 Holes Part No. 513610-1452 2

Isuzu Engine Excavator Water Pump High Pressure With 6 Holes Part No. 513610-1452 3

Tag:

Place of Origin:	China
Brand Name:	KING BEST
Model Number:	EX200

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard Export Packing
Delivery Time:	5-8 Working days
Payment Terms:	L/C, T/T, Western Union, D/A , Paypal, MoneyGram, D/P
Supply Ability:	1000PCS Per Month
